APPLICATION
mD-1p minidriver is designed for power supply of all Lms MIR LED models.
FEATURES
- Minidriver provides pulse mode of operation with fixed signal data parameters (amplitude, repetition rate and pulse duration).
- Possibility of synchronization with an external device (such as LMSNT SDM synchronous detector) with the help of synchronization output contacts.
- Ease of use and durability.
TECHNICAL CHARACTERISTICS

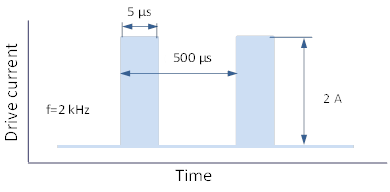

Pulse mode current-time relation
| Main characteristics | |
|---|---|
| Parameter | Value |
| Input voltage | Stabilized +5 V |
| Voltage tolerance | -5..+5 % |
| Power consumption | < 4 W |
| Board dimensions | 24×12 mm |
| Synchronization output voltage | 5 V |
| Fixed parameters | |
| Signal data | Pulse mode |
| Pulse duration | 5 µs |
| Repetition rate | 2 kHz |
| Output current amplitude | 2 A |
